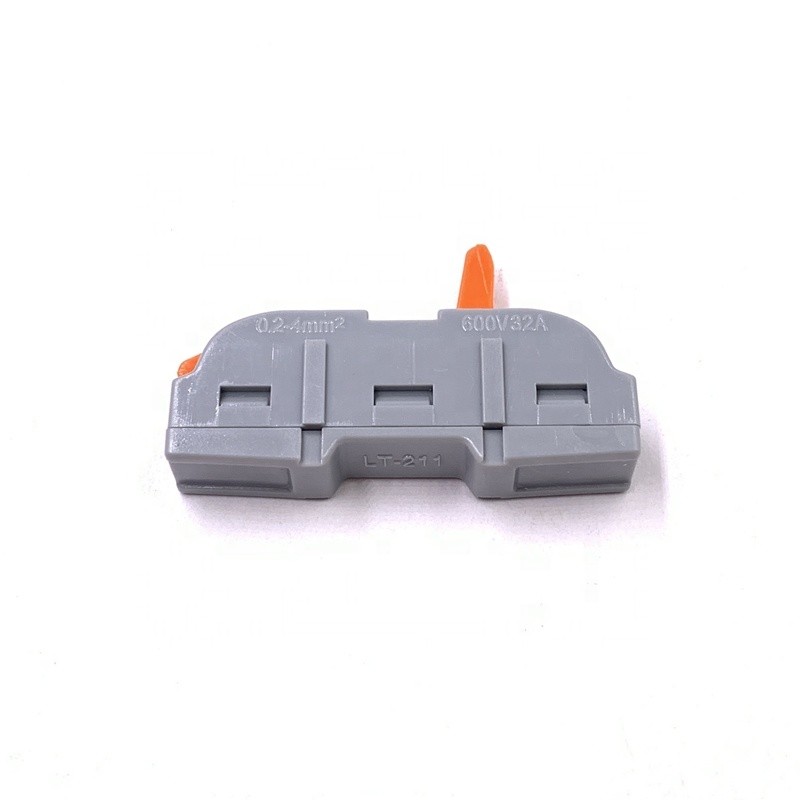

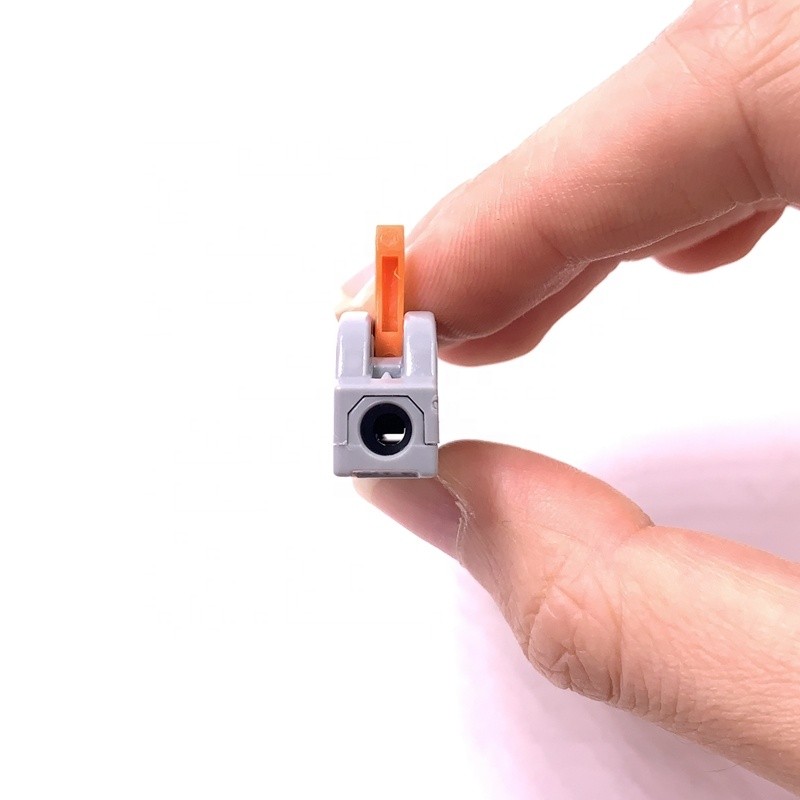

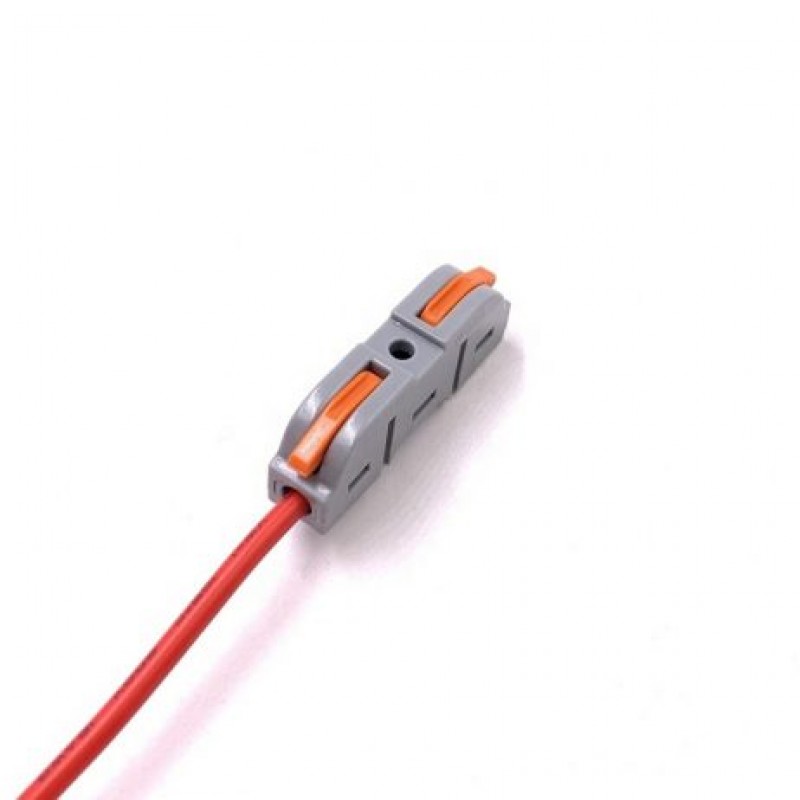

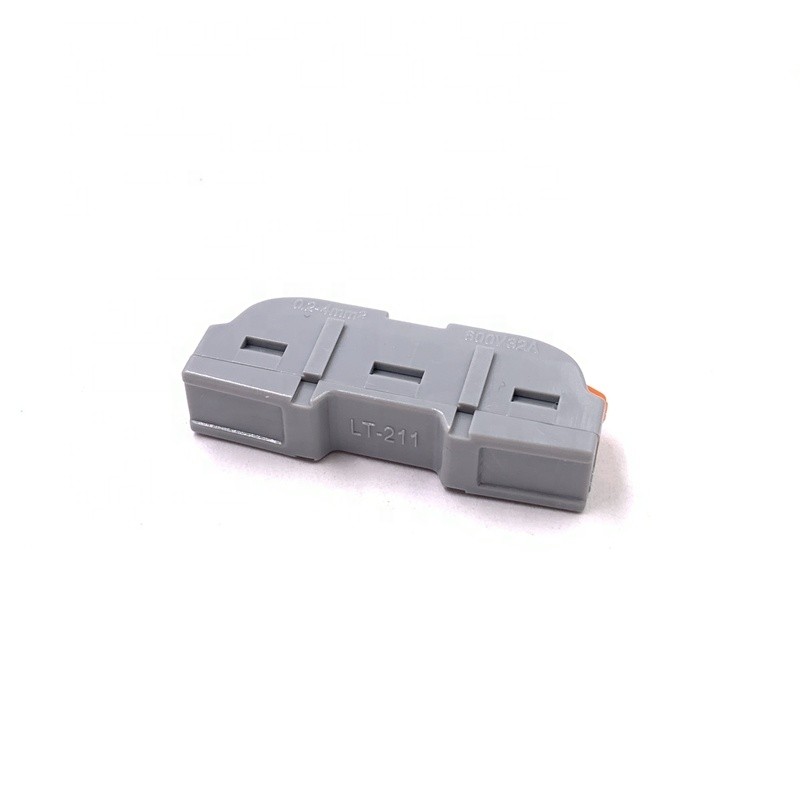

LT-211 (SPL-1) Quick Connection Terminals Can be Spliced

  • Product Code: EPI12045
  • Availability: 254

0 reviews Write a review

  • Rs.15.00
  • (Excluding 18% GST)

OR

For all Bulk & B2B Product Enquiries Kindly share your requirement at support@electropi.in

The PCT series compact splicing connectors make the connecting easily save time and money in distribution boxes or junction boxes. With the compact body, we can make connecting possible to be done in the narrow space and enable the high wiring density.

This is a PCT-211(SPL-1) 0.08-4mm2 Single Pole Wire Connector Terminal Block with Spring Lock Lever for Cable Connection.PCT Spring Lever Connector package contains a compact locking wire connector by a spring lever, which is used for single-strand hardwire with 0.08mm to 4mm2area or soft wire with 0.08mm to 4.0mm2 area (or AWG28 to AWG12). This connector can tolerate the rated voltage up to 600V with an electric current peak of 20A.


Features:

  1. High-grade Insulative Nylon Material
  2. Strong Spring Locking Lever
  3. Nickel Plated Metal Point Inside
  4. Good Temperature Resistance
  5. Compact Splicing Connector
  6. 4-Conductor Terminal Block
  7. With Operating Levers
  8. Max. Continuous Service Temperature 85C

Package Includes:

1 x LT-211 (SPL-1) Quick Connection Terminals Can be Spliced



Specifications :-

Model

LT-211(SPL-1)

Rated Voltage (V)

600

Rated Current(A)

20

Color

Grey+Orange

Operating Temperature Range (C)

-20 to 85
Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India
MRP Rs. 21.83 (Inclusive of all Taxes)
