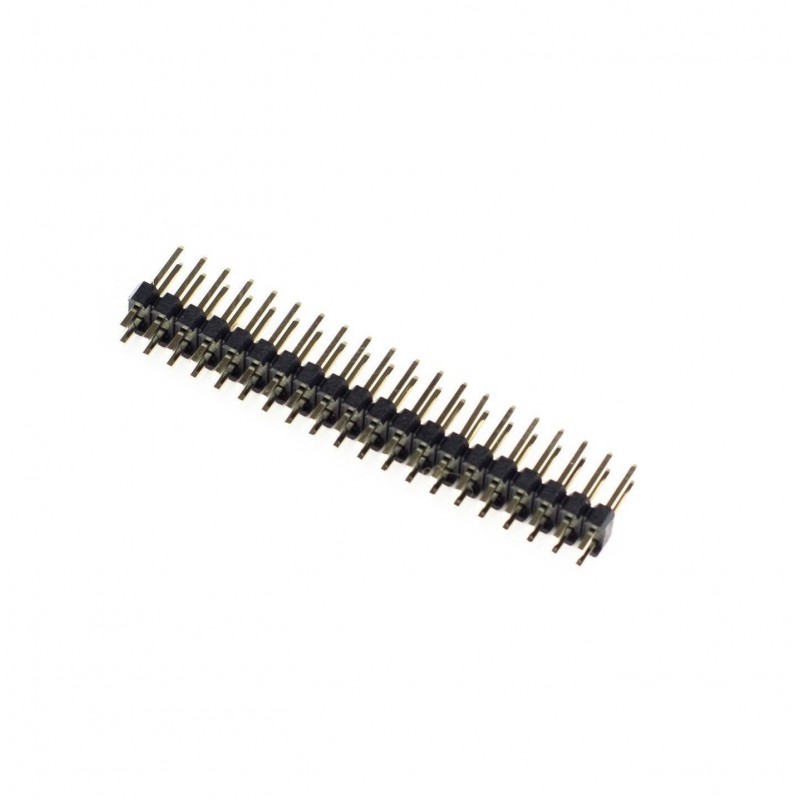

2x20 Pin 2.54mm Pitch Male Berg Strip - Break Away Header - Straight
- Product Code: EPI2378
- Availability: 1595
-
Rs.18.00
- (Excluding 18% GST)
OR
This 20x2 Pin Male Break Away Header Straight has the industry standard spacing of 2.54mm and are designed for soldering directly into printed circuit boards (PCB). They are supplied Best for extension of pins of Microcontorllers and ICs.
Also Used for Raspberry Pi Zero, Raspberry Pi Zero W, Arduino and others.
It is a 2.54mm 2x20 Pin Male Double Row Straight Long Header Strip. It has 1 row of 20 pins each. Ideal for through-hole mounting.
Package Includes:
1 x 2x20 Pin 2.54mm Pitch Male Berg Strip - Break Away Header - Straight
Specifications :-
| Connector | Header Strip |
| Gender | Male |
| Mounting Type | Through Hole |
| Pin Length (mm) | 10 |
| Pin Spacing (mm) | 2.54 |
| Contact Material | Phosphor Bronze |
| Contact Resistance | 20m |
| Insulation Material | PBT UL 94V-0 |
| Insulation Resistance (M) | 1000 |
| Length (mm) | 51 |
| Width (mm) | 5 |
| Height (mm) | 17 |
| Weight (gm) | 3 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India |
| MRP | Rs. 21.24 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
