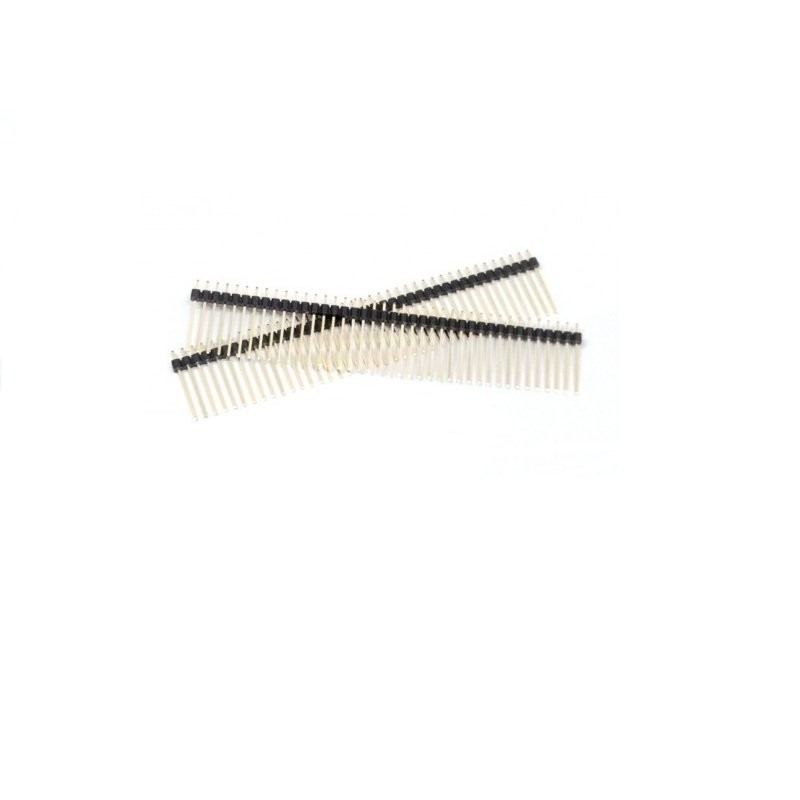

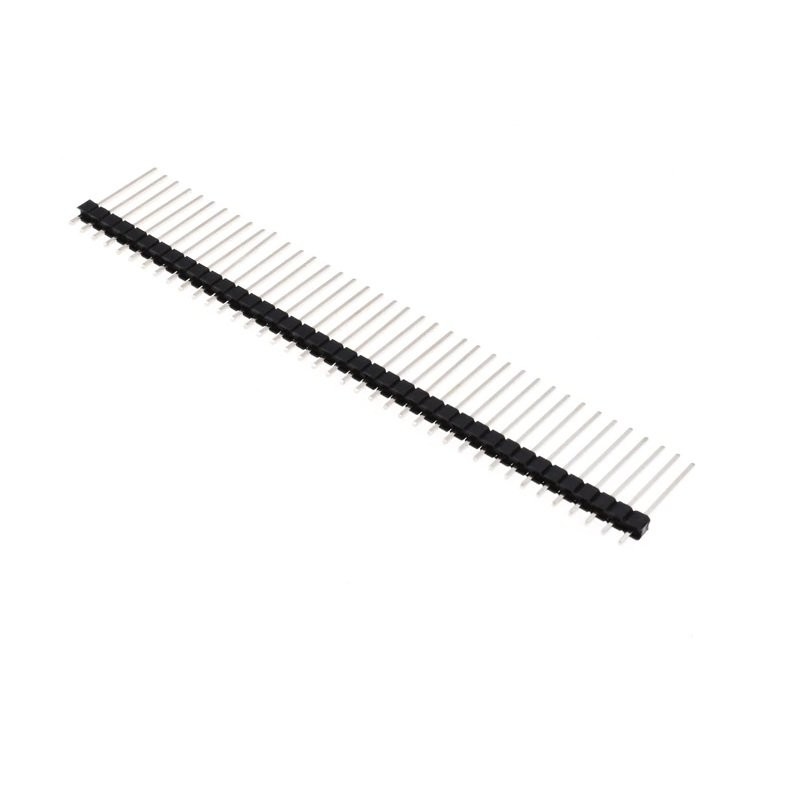

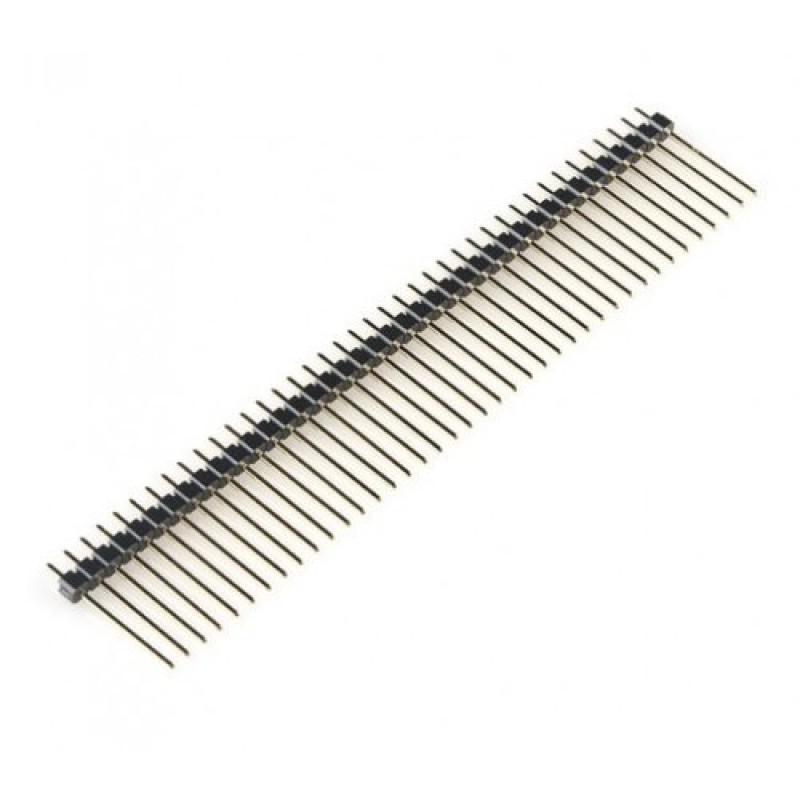

1x40 Pin 2.54mm Pitch Male Single Row Straight Long Header Berg Strip
- Product Code: EPI2187
- Availability: 333
-
Rs.29.00
- (Excluding 18% GST)
OR
It is a 2.54mm 1x40 Pin Male Single Row Straight Long Header Strip. It has one row of 40 pins. Ideal for through-hole mounting. It has 20mm long pins and the plastic spacer can be adjusted according to the application.
Package Includes:
1 x 1x40 Pin 2.54mm Pitch Male Single Row Straight Long Header Berg Strip
Specifications :-
| Connector | Header Strip |
| Gender | Male |
| Mounting Type | Through Hole |
| Pin Length (mm) | 20 |
| Pin Spacing (mm) | 2.54 |
| Contact Material | Phosphor Bronze |
| Contact Resistance | 20m |
| Insulation Material | PBT UL 94V-0 |
| Insulation Resistance (M) | 1000 |
| Length (mm) | 101 |
| Width (mm) | 2.4 |
| Height (mm) | 17 |
| Weight (gm) | 3 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India |
| MRP | Rs. 34.22 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
