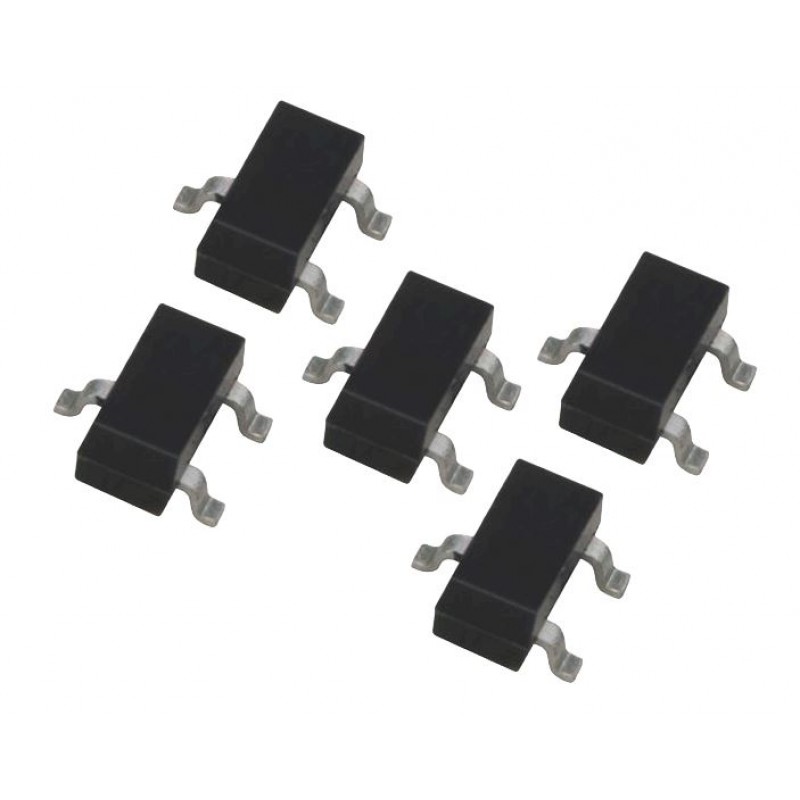

BC857 - (SMD SOT-23 Package) - PNP General Purpose Transistor - 5 Pieces Pack

BC857 transistor belong to PNP general purpose transistors. General purpose switching and amplification are the main applications of  this transistor.

Specifications:-

• Mounting Style: SMD/SMT
• Package/Case: SOT-23-3
• Transistor Polarity: PNP
• Configuration: Single
• Collector- Emitter Voltage VCEO Max: 45 V
• Collector- Base Voltage VCBO: 50 V
• Emitter- Base Voltage VEBO: 5 V
• Maximum DC Collector Current: 0.2 A
• Gain Bandwidth Product fT: 100 MHz
• Maximum Operating Temperature: + 150 C
• DC Current Gain hFE Max: 125 at 2 mA at 5 V
• DC Collector/Base Gain hFE Min: 125
• Minimum Operating Temperature: - 65 C
• Pd - Power Dissipation: 250 mW
