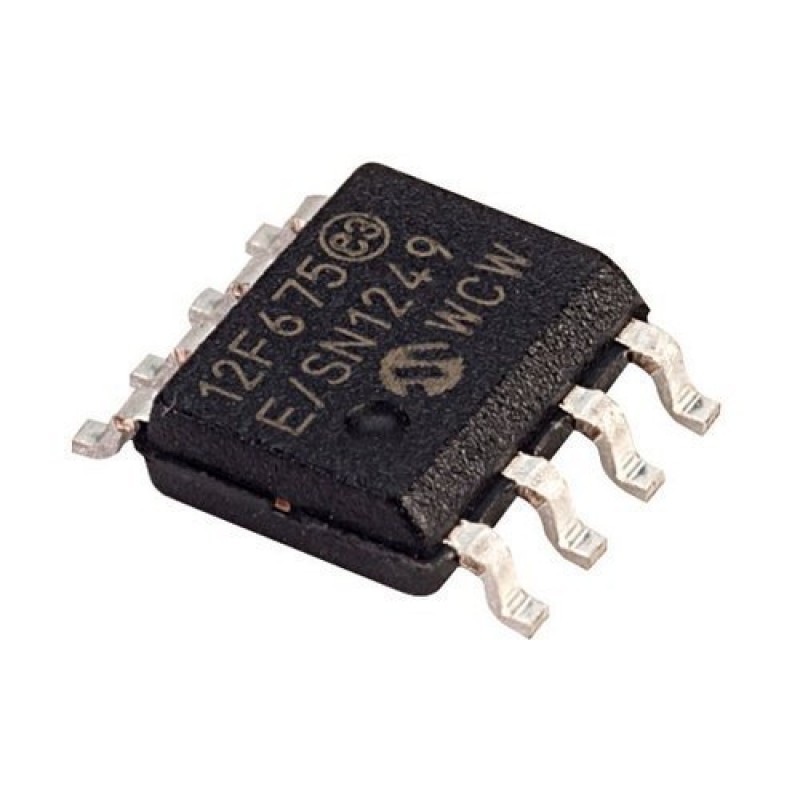

PIC12F675 Microcontroller - (SMD Package)

  • Product Code: EPI18188
  • Availability: 276

0 reviews Write a review

  • Rs.95.00
  • (Excluding 18% GST)

OR

For all Bulk & B2B Product Enquiries Kindly share your requirement at support@electropi.in
The PIC12F675 is a 8-Pin, Flash-Based 8-Bit CMOS Microcontrollers. This powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS Flash-based 8-bit microcontroller packs Microchip’s powerful PIC® MCU architecture into an 8-pin package and features 4 channels for the10-bit Analog-to-Digital (A/D) converter, 1 channel comparator and 128 bytes of EEPROM data memory. This device is easily adapted for automotive, industrial, appliances and consumer entry-level product applications that require field re-programmability.

Features:-

1. High-Performance RISC CPU:

   • Only 35 Instructions to Learn - All single-cycle instructions except branches

   • Operating Speed: - DC – 20 MHz oscillator/clock input - DC – 200 ns instruction cycle

   • Interrupt Capability

   • 8-Level Deep Hardware Stack

   • Direct, Indirect, and Relative Addressing modes

2. Special Microcontroller Features:

   • Internal and External Oscillator Options - Precision Internal 4 MHz oscillator factory calibrated to ±1% - External Oscillator support for crystals and resonators

   • Power-Saving Sleep mode

   • Wide Operating Voltage Range – 2.0V to 5.5V

   • Industrial and Extended Temperature Range

   • Low-Power Power-on Reset (POR)

   • Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)

   • Brown-out Detect (BOD)

   • Watchdog Timer (WDT) with Independent Oscillator for Reliable Operation

   • Multiplexed MCLR/Input Pin

   • Interrupt-on-Pin Change

   • Individual Programmable Weak Pull-ups

   • Programmable Code Protection

   • High Endurance Flash/EEPROM Cell

      - 100,000 write Flash endurance

      - 1,000,000 write EEPROM endurance

      - Flash/Data EEPROM Retention: > 40 years

3. Peripheral Features:

   • 6 I/O Pins with Individual Direction Control

   • High Current Sink/Source for Direct LED Drive

   • Analog Comparator module with:

       - One analog comparator

       - Programmable on-chip comparator voltage reference (CVREF) module

       - Programmable input multiplexing from device inputs

       - Comparator output is externally accessible

   • Analog-to-Digital Converter module (PIC12F675):

       - 10-bit resolution

       - Programmable 4-channel input

       - Voltage reference input

   • Timer0: 8-Bit Timer/Counter with 8-Bit Programmable Prescaler

   • Enhanced Timer1:

      - 16-bit timer/counter with prescaler

      - External Gate Input mode

      - Option to use OSC1 and OSC2 in LP mode as Timer1 oscillator, if INTOSC mode selected

   • In-Circuit Serial Programming TM (ICSPTM) via two pins

Specification:-

Parameters Values
Program Memory Type Flash
Program Memory Size (KB) 1.75
CPU Speed (MIPS/DMIPS) 5
SRAM (B) 64
Data EEPROM/HEF (bytes) 128
Timers 1 x 8-bit, 1 x 16-bit
Number of Comparators 1
Temperature Range (°C) -40 to 85
Operating Voltage Range (V) 2 to 5.5
Pin Count 8


Related Document:-

 PIC21F675 SMD Data Sheet
Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India
MRP Rs. 115.64 (Inclusive of all Taxes)
