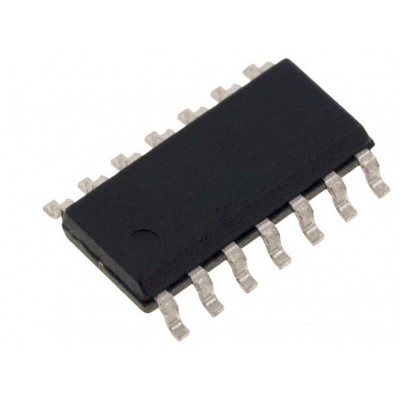

74LS122 IC - (SMD Package) Retriggerable Monostable Multivibrator IC (74122 IC)

These dc triggered multivibrators feature pulse width control by three methods. The basic pulse width is programmed by selection of external resistance and capacitance values. The LS122 has an internal timing resistor that allows the circuits to be used with only an external capacitor. Once triggered, the basic pulse width may be extended by retriggering the gated low-level-active (A) or high-level-active (B) inputs, or be reduced by use of the overriding clear.

Applications :-

• Its is commonly used in delay & timing circuits.
• It is also used for temporary memories.

Specifications :-

• Output Current: 16mA
• Supply Voltage Min: 4.75V
• Supply Voltage Max: 5.25V
• No. of Pins: 14 Pins
• Propagation Delay: 45ns
• Operating Temperature Min: 0°C
• Operating Temperature Max: 70°C

Package Includes :-

1 X 74LS122 IC - (SMD Package) Retriggerable Monostable Multivibrator IC (74122 IC)
