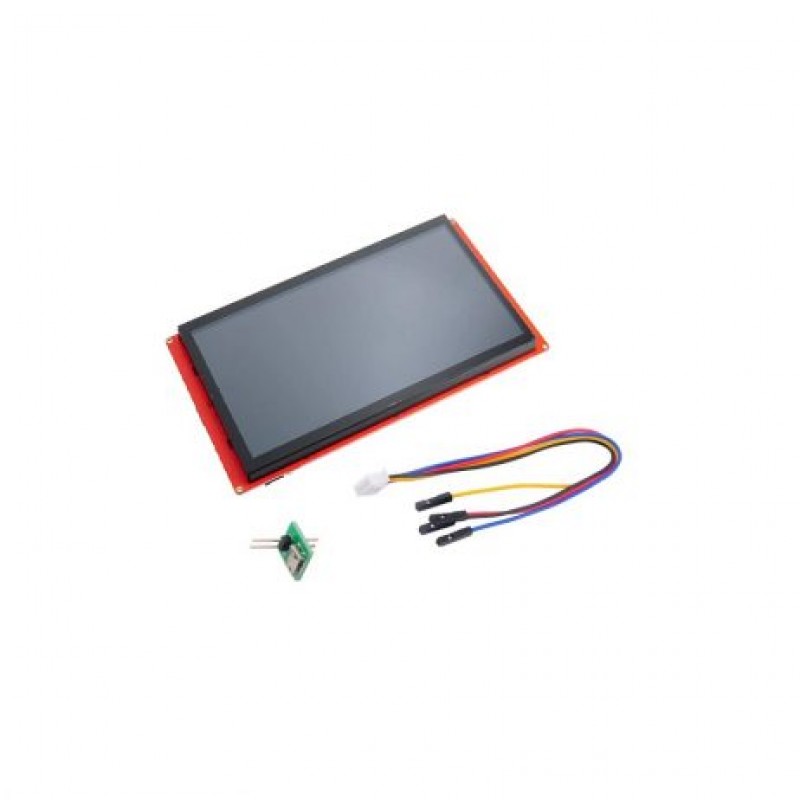

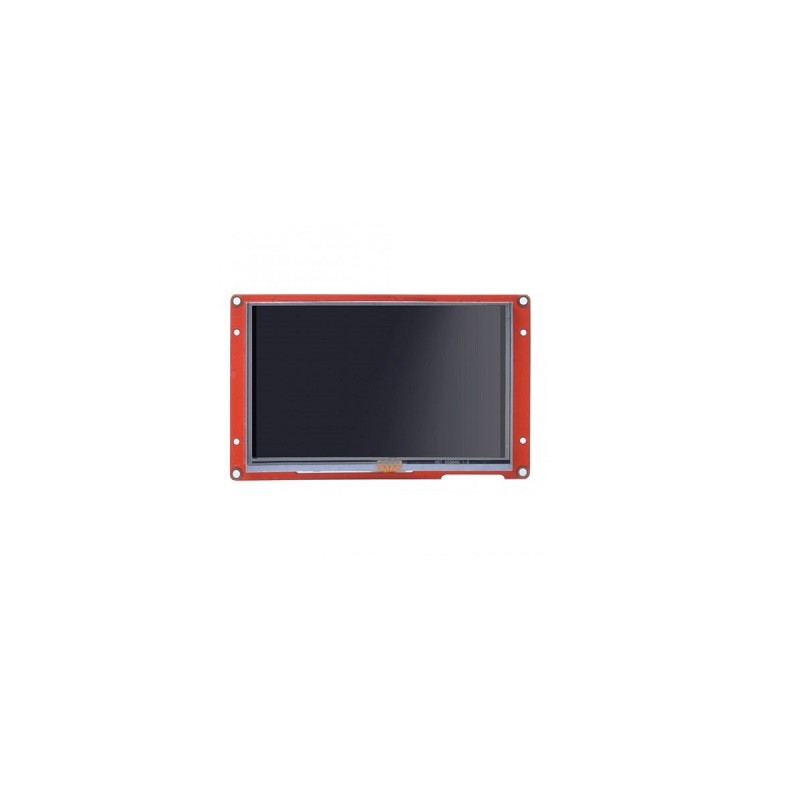

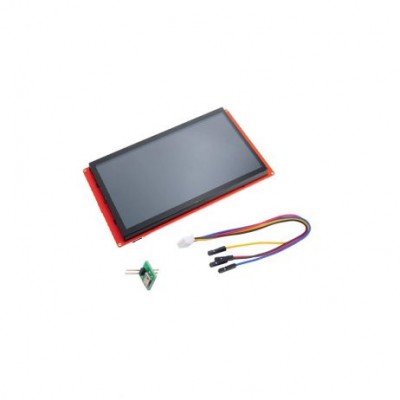

Nextion 5 inch Intelligent NX8048P050-011C HMI Capacitive Touch Display

This is a Nextion Intelligent NX8048P050_011C 5.0 HMI Capacitive Touch Display. This display is from the Newly launched Intelligent series and is very easy to use and can be interfaced to the Microcontroller using a simple UART port. The Nextion display can be easily interfaced with any Microcontroller using just 2 wires. Nextion displays have a built-in microcontroller that controls the display, it takes care of which button has been clicked, creating text, storing images, or change the background.

The Nextion Intelligent NX8048P050-011C 5.0 Capacitive Touchscreen Display is so simple to the interface that it can easily work with Arduino, Raspberry Pi, ESP8266, ESP32, PIC Microcontroller, AVR controller, ARM Microcontroller and even work with basic 8051 microcontrollers basically it will work with any board or Microcontroller that has UART port.

Note: the small power supply test board and connecting wire inside the package allow you to test if the electrical supply is enough or not.

Features:

1. 5 LCD-TFT HMI display module
2. 840 x 480 screen resolution
3. RGB 65K true-to-life colors
4. Capacitive touch panel
5. 300 nit Brightness
6. Onboard 200MHz MCU

Package Includes:

1 x Nextion Intelligent NX8048P050_011C 5.0 HMI Capacitive Touch Display

Specifications :-

Model	NX8048P050-011C
Operating Voltage(V)	5 V
Operating Current(mA).	220 mA
FLASH Memory	120 MB
Serial Port Mode	3.3V/5.0V TTL
Brightness	300 nit
Backlight lifetime	>30,000 Hours
Touch type	Capacitive
Color	16 bit 565, 5R-6G-5B
Resolution	800480 pixel
Length (mm)	140
Width (mm)	85
Height (mm)	6.4
Weight (gm)	140
