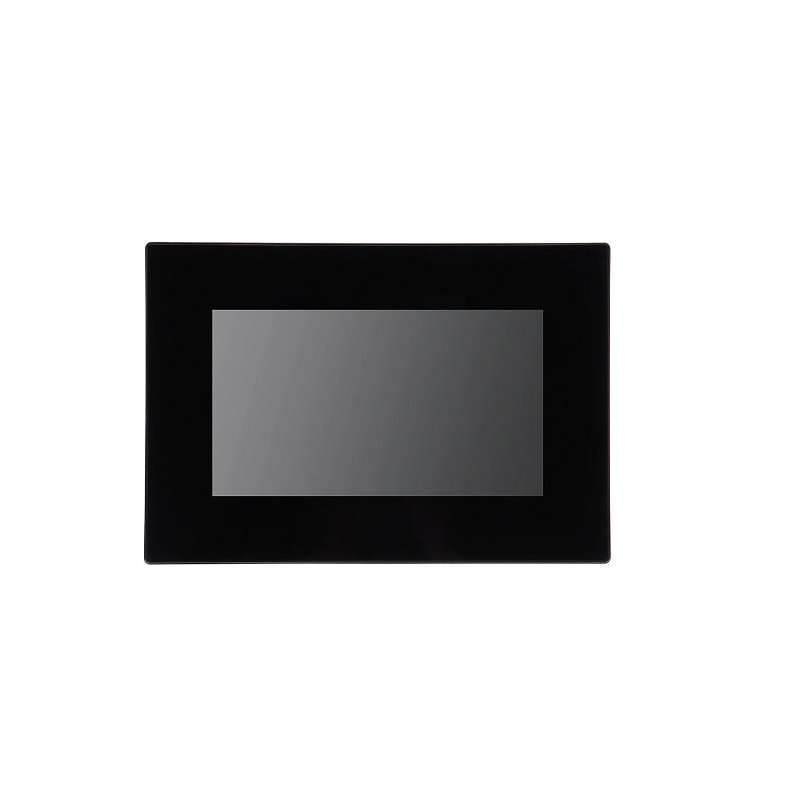

Nextion 5 inch Intelligent NX8048P050-011R-Y HMI Resistive Touch Display with enclosure

NX8048P050-011R-Y is a 5.0 Nextion Resistive touchscreen display with an enclosure that comes with a resistive touch display. This display is from the Newly launched Intelligent series and is very easy to use and can be interfaced to the Microcontroller using a simple UART port. The Nextion display can be easily interfaced with any Microcontroller using just 2 wires. Nextion displays have a built-in microcontroller that controls the display, it takes care of which button has been clicked, creating text, storing images, or change the background. The Nextion display then communicates with your microcontroller using serial communication at a 9600 baud rate.

NX8048P050-011R-Y is a 5.0 Nextion Resistive touchscreen display with an enclosure that comes with a resistive touch display is so simple to the interface that it can easily work with Arduino, Raspberry Pi, ESP8266, ESP32, PIC Microcontroller, AVR controller, ARM Microcontroller and you wont believe it will work even with basic 8051 microcontrollers basically it will work with any board or Microcontroller that has UART port.

Note: The small power supply test board and connecting wire inside the package allow you to test if the electrical supply is enough or not.

Features:

1. 5 LCD-TFT HMI display module
2. 840 x 480 screen resolution
3. RGB 65K true-to-life colors
4. Resistive touch panel
5. 300 nit Brightness
6. Onboard 200MHz MCU
7. 512 KB of SRAM
8. 128 MB of Flash memory
9. 1024 Byte EEPROM

Package Includes:

1 x Nextion Intelligent NX8048P050_011R_Y HMI 5.0 Resistive Touch Display with enclosure

Specifications :-

Model	NX8048P050-011R-Y
Operating Voltage	5 V
Operating Current	220 mA
Touch type	Resistive
Touches	> 1 million
Backlight	LED
Brightness	300nit
Color	65K 65536 colors
Serial Port Mode	3.3V/5.0V TTL
Working Temperature Range (C).	-20 to 70
Length (mm)	160
Width (mm)	105
Height (mm)	21
Weight (gm)	229
