  • Hongfa 24V 5A DC HF49FD/024-1H12F 5 4 Pin SPST Miniature Power Relay

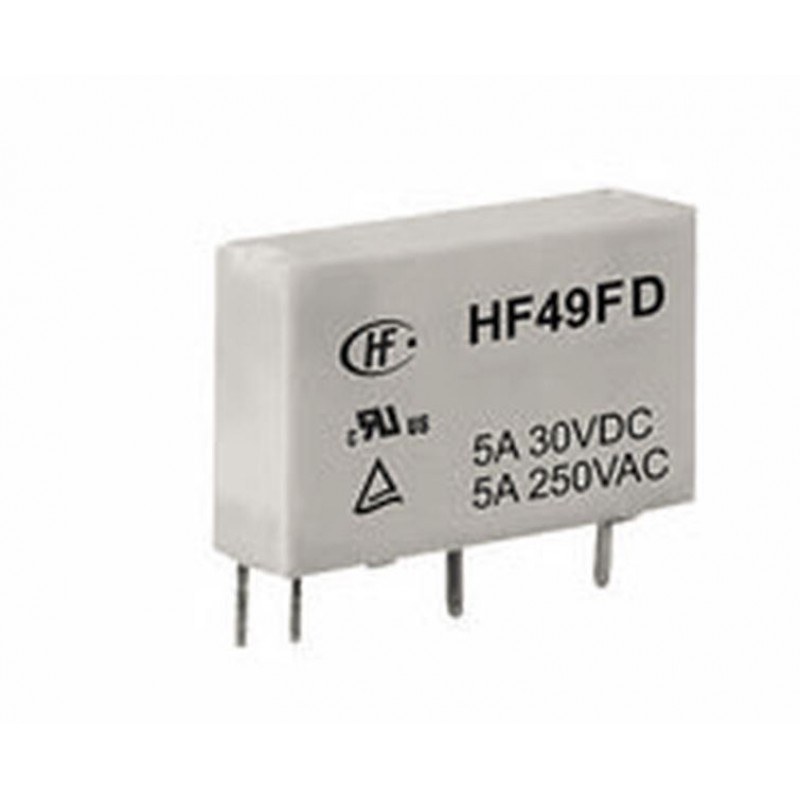

Hongfa 24V 5A DC HF49FD/024-1H12F 5 4 Pin SPST Miniature Power Relay

  • Product Code: EPI10576
  • Availability: 4352

0 reviews Write a review

  • Rs.95.00
  • (Excluding 18% GST)

OR

For all Bulk & B2B Product Enquiries Kindly share your requirement at support@electropi.in

Hongfa 24V 5A DC HF49FD/024-1H12F 5 4 Pin SPST Miniature Power Relay offers low height, 5A switching capability, 5kV dielectric strength (between coil and contacts) and environmentally friendly product (RoHS compliant) and meets VDE 0700, 0631 reinforce insulation.


Features and Specifications:

  • Type : HF49FD/024-1H12F
  • Coil nominal voltage : 24 V DC
  • Min. pick-up voltage : 16.8 V DC
  • Max. pick-up voltage : 28.8 V DC
  • Control mode : monostable, 1 coil
  • Resistance (coil) : 3200 Ω
  • Contact type : 1 maker
  • Contact material : AgNi
  • Switching voltage (max.) : 30 V DC, 250 V AC
  • Switching current (max.) : 5 A
  • Max. switching capacity 150 W, 1250 VA
  • Connection : Solder pins
  • Min. temperature : -40 °C
  • Max. temperature : +85 °C
  • Length : 20 mm
  • Width : 5 mm
  • Height : 12.5 mm
  • Dimensions : (L x W x H) 20 x 5 x 12.5 mm
  • Content : 1 pc(s)
  • RoHS-compliant : Yes
  • Product type : PCB relay


Package Includes:

1 x Hongfa 24V 5A DC HF49FD/024-1H12F 5 4 Pin SPST Miniature Power Relay
Brand/Manufacturer
Country Of Origin
Packer / Importer Address Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India
MRP Rs. 100.3 (Inclusive of all Taxes)
