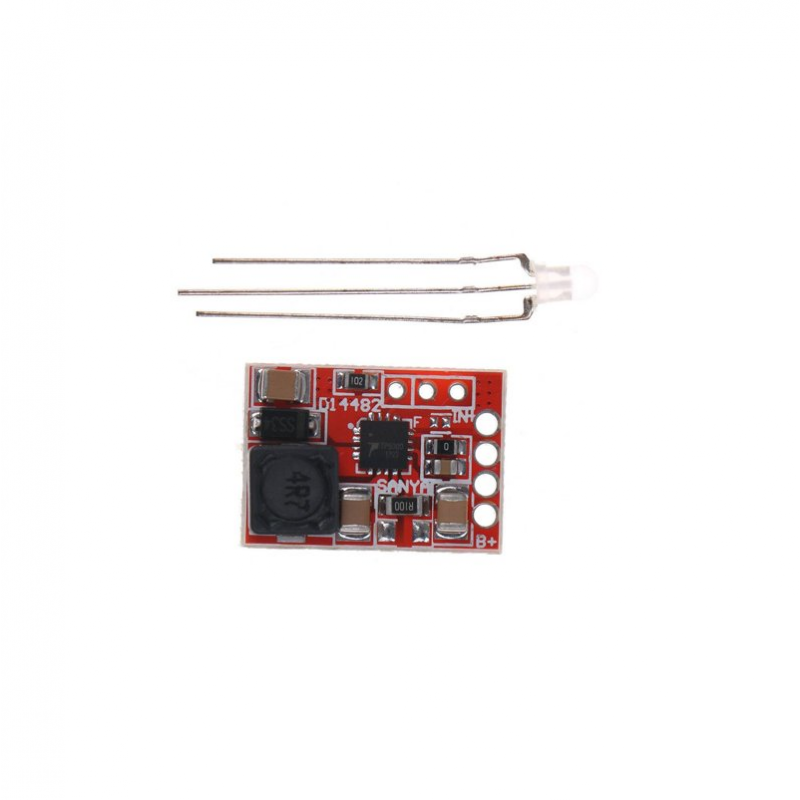

TP5000 3.6V/4.2V 1A LithiumBattery Charger Module
- Product Code: EPI22142
- Availability: 555
-
Rs.64.00
- (Excluding 18% GST)
OR
This is a Charging Module for the Lithium Battery based on the TP5000 Battery Charging IC. This module can charge a lithium battery with an current of up to 1A. This module has advance features like battery temperature protection, reverse battery shutdown, and short circuit protection.
The charging module comes with a dual colour led ,which is used to denote the charging and full status of the battery. The module also serves as an battery protection board, with built-in automatic recharge function it will automatically charge the battery when it gets fully discharged.
Applications:
- Portable Equipment
- MP3,Mp4 Players
- Electric Tools
- LED Drivers.
Features:
- Single Battery Charger Module
- Programable Charge Curren Form 0.1A to 2A
- Programable Precharge Current Form 10% to 100%
- LED
Specifications:
| Operating Voltage (VDC) | 4.2~9 |
| Operating Temperature(°C) | -40 to 85 |
| Charging method | Linear |
| Length (mm) | 22 |
| Width (mm) | 15 |
| Height (mm) | 5 |
| Weight (gm) | 2 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India |
| MRP | Rs. 139.24 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
