1x40 Pin 2mm Pitch Female Berg Strip - Straight

  • Product Code: EPI2300
  • Availability: 117
  • Rs.24.00
  • (Excluding 18% GST)

OR

For all Bulk & B2B Product Enquiries Kindly share your requirement at support@electropi.in

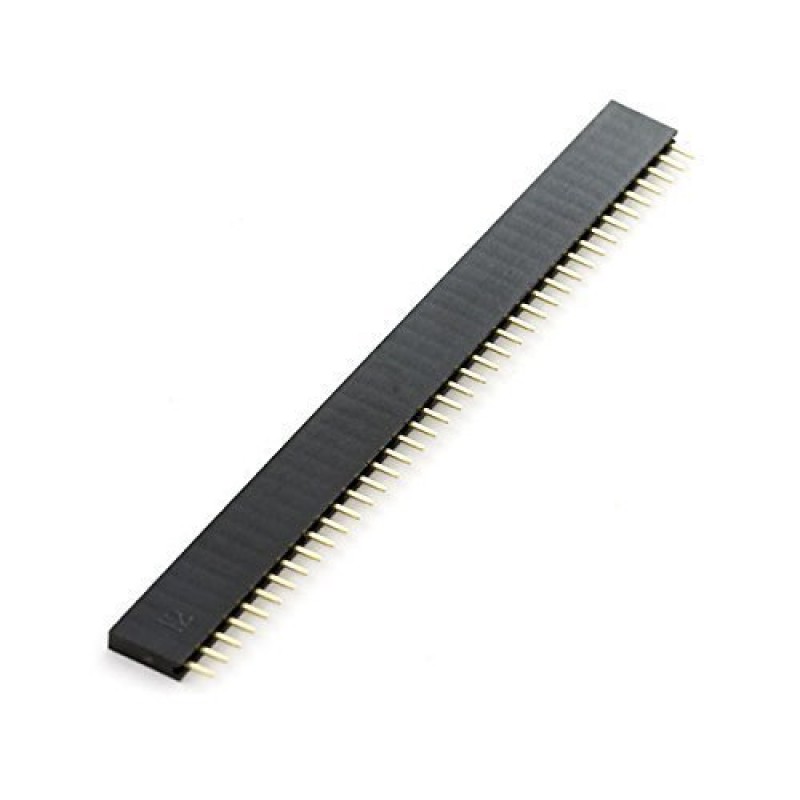

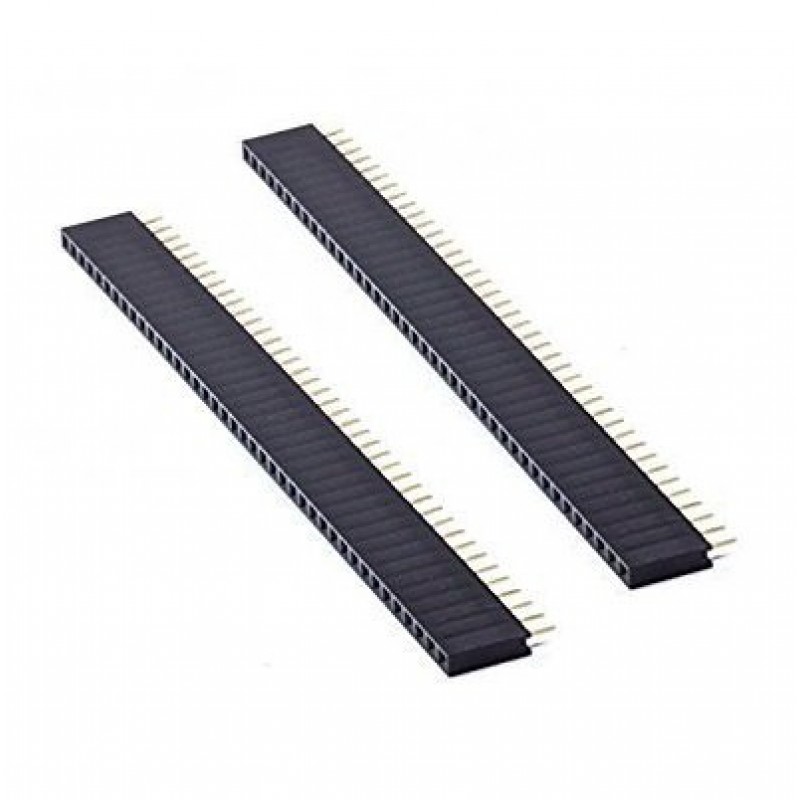

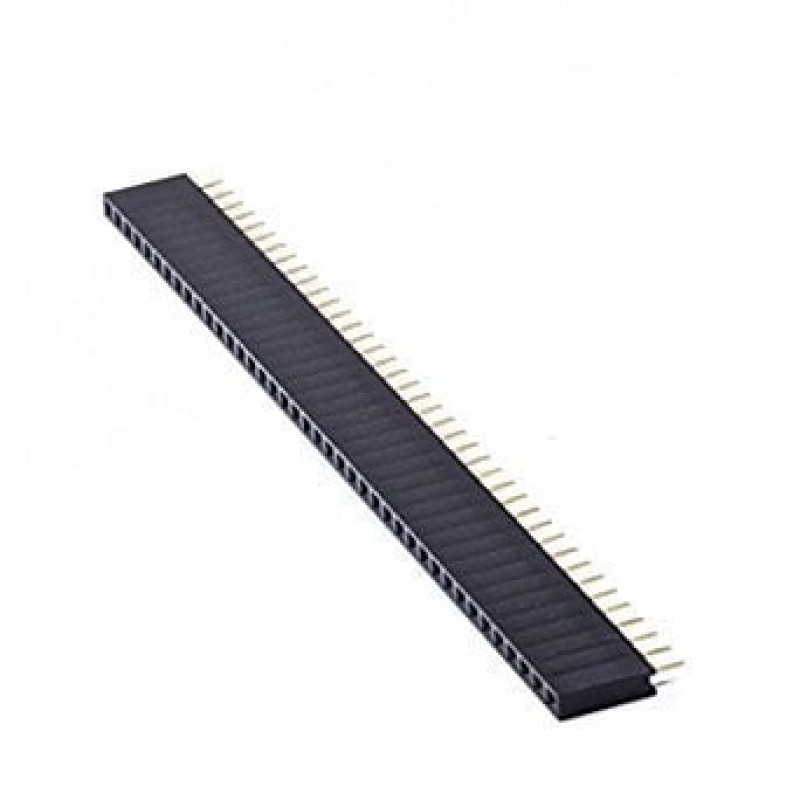

This is 40 pins single row female berg strip/header. It can be cut into any desired sizes with the wire cutter. The pitch for this header is standard 2.0mm.


Specifications and Features:

  1. Number of Pins: 40.
  2. Pin Spacing(pitch): 2 mm.
  3. Strip Length: 80.60 mm.
  4. Strip width : 2.49 mm.
  5. Strip Height: 4.4 mm(Only Plastic Part).
  6. Strip Height: 6.8 mm (with contact Points).
  7. Pin height: 2.2mm.

Package Includes:

1 x 1x40 Pin 2mm Pitch Female Berg Strip - Straight



Specifications :-

Number of Pins

40

Pitch (mm)

2

Length (mm)

81

Width (mm)

2.7

Height (mm)

7

Weight (gm)

4

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India
MRP Rs. 33.04 (Inclusive of all Taxes)
